POWER SUPPLY ALINCO DM 340 MV 35 A (SOLD)

Power Supply Alinco DM 340 MV 35 A


Preview


  • Barang 2nd Mulus like a new
  • Normal semua ... bos
  • Cocok untuk dikoleksi ...
>>>SOLD To Batu Malang<<<

Tampak samping Kanan
Tampak sebelah kiri
Tampak belakang
Tampak bawah

Referensi :
Best power output per volume. The DM340MVT delivers high quality steady DC of max 35Amps (30A continuous) with reliable protection circuit.

Features of DM-340MVT (Available only MVT version / AC120V):

  • Highly visible class 2.5 (instrument-grade) V/A twin meters for monitoring the status on real-time.
  • Forced Air Cooling Fan.
  • 16mm Main terminals to provide the most efficient transfer of regulated power output (30% larger than conventional models).
  • 2 pairs of auxiliary snap-in and a cigar socket output terminals on the front-panel for additional convenience.
  • Fuse socket on the front-panel eases the maintenance.


Specifications:

  • Output voltage: 13.8Vdc (rated) Variable 0 to 15Vdc
  • Output current: 35A max 50% duty, 30A continuous
  • Input voltage: DM340MVT / 120Vac
  • Input frequency: 50 to 60Hz
  • Ripple: less than 30mVp-p
  • Power Consumption: approx. 800vA
  • Circuit protection: over-load at > 35A
  • Dimension: 235 x 153 x 230mm (9.25 x 6.02 x 9.06 inches)
  • Weight: 9.4Kgs (20.7lb) net

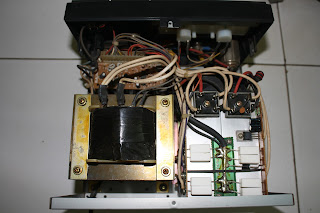

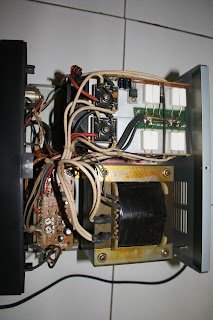

Daleman Oke
Full Original
Daleman bersih blum ada sorderan ulang
